Shape memory effect nanotweezers
NANOTWEEZER - a miniature device for three-dimensional manipulation (capture, movement, retention and attachment to the right place) of micro- and nano-objects.
The nanotweezers

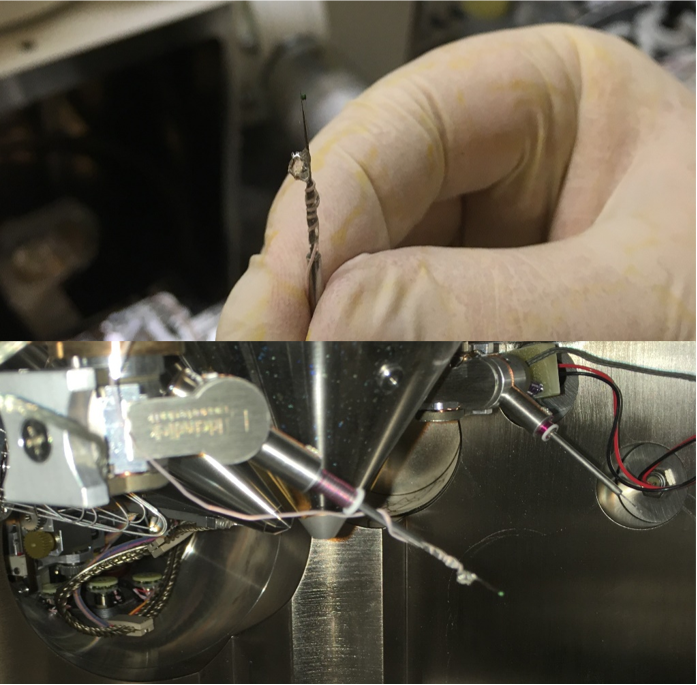

is mounted on commercial manipulators in the chamber of an electron or ion microscope and is triggered (closed) when heated by electric current
107
cycles withstands nanotweezers
7 000
Euro is the cost of a batch of nanotweezers (5 pieces)
Technical characteristics of the device
-
NanoobjectsMicrobioobjects
-
Manipulation environmentVacuumBiological environment, air
-
Object dimensions10 – 100 nm1 – 5 mm
-
Capture sizes, min / max mm1 / 205 / 200
-
Working temperature, °С30 – 6030 – 60
-
Positioning accuracy1 – 10 nм1 – 10 mm
NANOTWEEZER - there is a tool for prototyping:
- Electronics and new materials based on single-wall nanotubes and nanowires
- BioMEMS
- MEMS
- Micro- nanoelectronics elements
- Microfluidics elements
- Nanofotonics elements
- etc.
Nanoactuator at the tip of the W needle and heating element

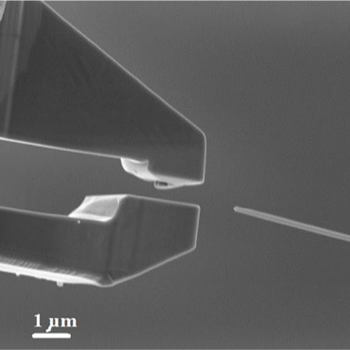

Approximation to the nanowire

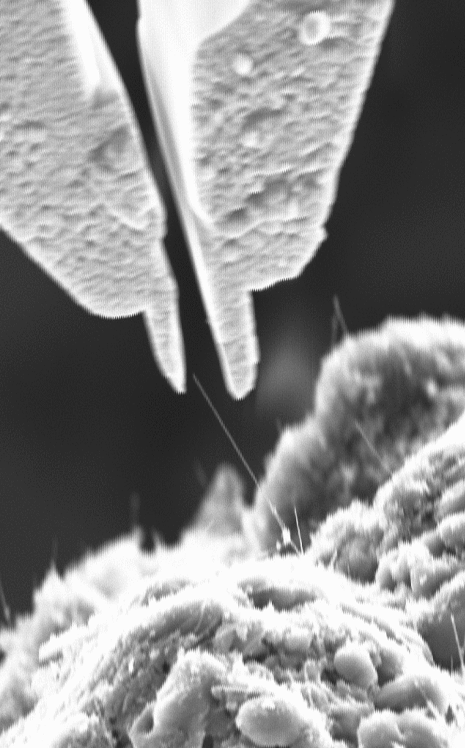

Capturing nanowire
Prototyping a nano biosensor to detect viruses and typical markers (MicroRNA) of latent diseases
such as central nervous system tumors at early stage

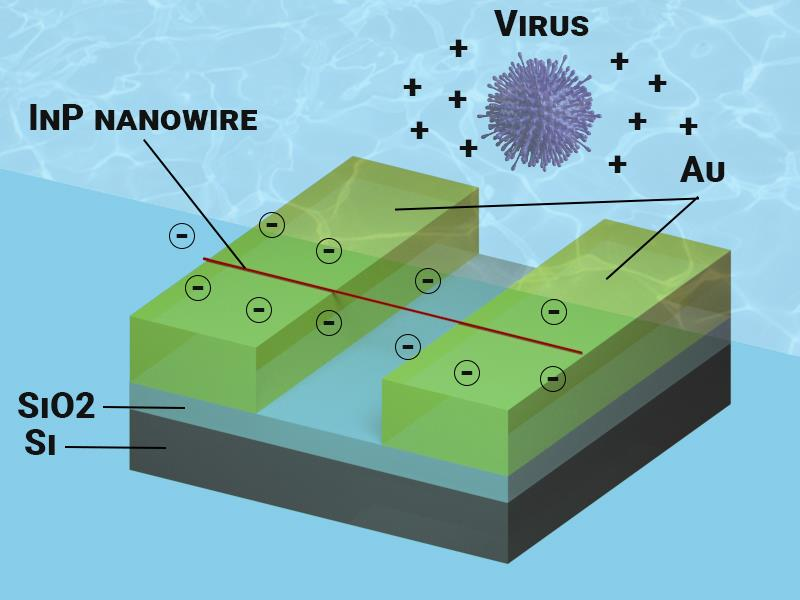

Sketch of bio-sensor device based on fieldeffect transistor based on InP nanowire

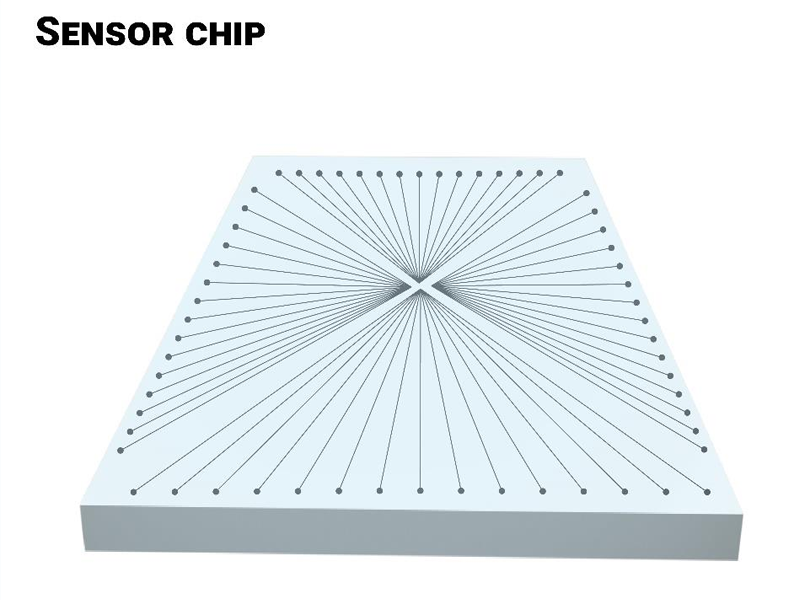

Schematic illustration of the sensor chip consisting of many bio-sensors
Integration with the existing nanopositioning systems for FIB and SEM
Kleindiek
Kleindiek Nanotechnik Gmbh
OmniProbe
Oxford Instruments
EasyLift NanoManipulator System
Thermo Fisher Scientific (FEI)
Kammrath&Weiss
Kammrath&Weiss Gmbh
